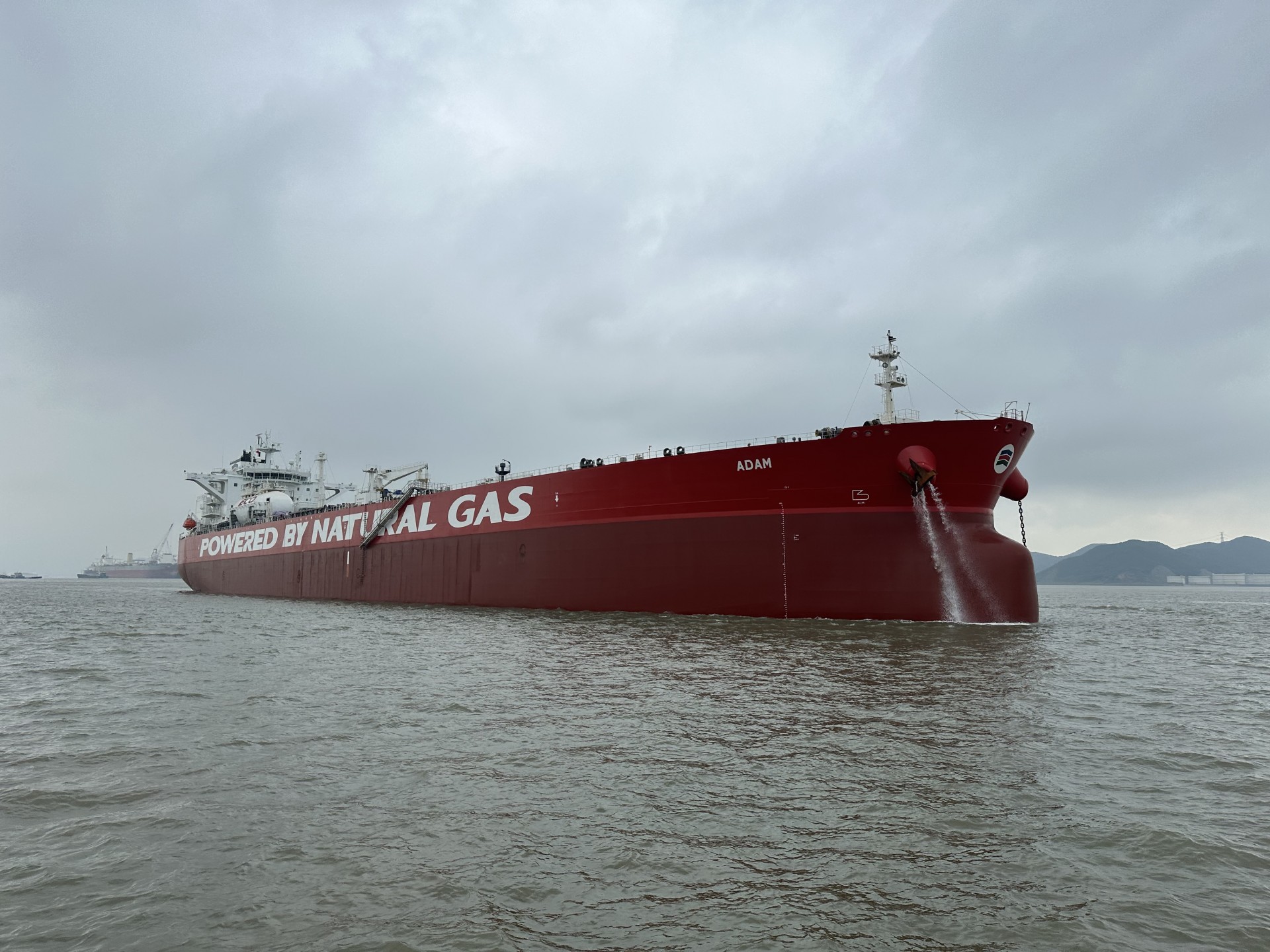

ADAM
BUILT: 2018
CLASS: ABS
FLAG: LIBERIA
BUILDER: Hyundai Samho Heavy Industries Co. Ltd., Makpo, South Korea
VESSEL PARTICULARS
Type of vessel:
+1A1 Tanker for Oil, ESP, CSR, SPM, Ice (1B) BIS, BMON, TMON, BWM(T), CCO, Clean (design, Tier III) E0, Gas Fuelled, NAUT (AW) VCS(2), Recyclable, COAT-PSPC (B,C) COMF,(C-2) ECA(SOx-A), LCS
Summer deadweight:
136,724 MTS
Summer draft:
15.020 m
Summer freeboard:
6.121 m
GRT / NRT:
64,909 / 35,359
LOA:
249.99 m
Beam:
44.00 m
Depth:
21.10 m
Keel to mast:
53.21 m
CARGO ARRANGEMENTS
Cargo / slop tanks:
12 / 2
Cargo capacity (98% ex slop tanks):
185,963.7 m³
Slop tank capacity (98%):
2,646 m³
Cargo tank coating:
Epoxy
Heating arrangement:
Tanks Mild Steel / Slops Steel with anticorrosion coating
SBT / IGS / COW:
Yes
Number of manifolds on each side:
3 x 406.40 mm
Distance bow to mid-point manifold:
123.70 m
Distance main deck to center manifold:
2,100 mm
Distance manifolds to ship's rail:
4,600 mm
Natural segregation with double valves:
3
Cranes / SWL:
2 x 15 T
CARGO PUMPS
Cargo pump type:
Centrifugal
Number of cargo pumps:
3
Capacity of cargo pumps:
3 x 5,500 m³ / h
PROPULSION
Main engine:
HYUNDAI-WIN GD W7X62DF-TIII 13,778 kW
Propeller type:
Fixed pitch
Generators:
3 x 1,480 kW
Bow thruster:
N/A
